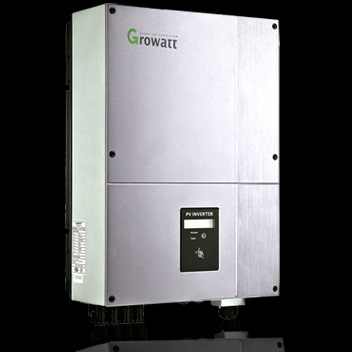

Growatt 5000MTL-10
ข้อมูลสินค้า
- Growatt 5000MTL-10
- Growatt
- 5000MTL-10
- สินค้าใหม่
- 236 คน
- 40,000.00 ฿
- 40,000.00 ฿
- 1 ธ.ค. 2556 17:39:12
- 1 ธ.ค. 2556 17:36:44
- http://www.growatt.com
รายละเอียดสินค้า
Model | Growatt 3600MTL | Growatt 4200MTL | Growatt 5000MTL |
Input data |
| ||
Max. DC power | 3800W | 4400W | 5200W |
Max. DC power each MPPT tracker | 2000W | 2500W | 3000W |
Max. DC voltage | 600V | 600V | 600V |
PV voltage range MPPT | 120V-600V | 120V-600V | 120V-600V |
Full load voltage | 190V-580V | 190V-580V | 190V-580V |
Max. number of parallel strings | 2/2 | 2/2 | 2/2 |
Number of MPP trackers | 2(Can parallel) | 2(Can parallel) | 2(Can parallel) |
MPPT input current | 10A/10A | 15A/15A | 15A/15A |
Max. input current | 10A/10A | 15A/15A | 15A/15A |
Output (AC) |
| ||
Nominal AC output | 3600W | 4200W | 4600W/5000W |
Max. AC power | 3600W | 4200W | 4600W/5000W |
Nominal output current | 15.6A | 18.5A | 20A |
Max. output current | 18A | 21A | 25A |
AC voltage range | 220V/230V/240V | 220V/230V/240V | 220V/230V/240V |
AC grid frequency range | 50Hz,60Hz/±5Hz | 50Hz,60Hz/±5Hz | 50Hz,60Hz/±5Hz |
Phase shift (cosφ) | 1 | 1 | 1 |
THDI | <3% | <3% | <3% |
AC connection | Single phase | Single phase | Single phase |
Efficiency |
| ||
Max. efficiency | 97.6% | 97.9% | 97.9% |
Euro - eat | 97% | 97.4% | 97.4% |
MPPT efficieny | 99.5% | 99.5% | 99.5% |
Protection devices |
| ||
DC reverse polarity protection | yes | yes | yes |
AC short - circuit protection | yes | yes | yes |
Ground fault monitoring | yes | yes | yes |
Grid monitoring | yes | yes | yes |
Integrated all - pole sensitive | yes | yes | yes |
General Data |
| ||
Dimensions (W / H / D) in mm | 360/510/188 | 360/510/188 | 360/510/188 |
Weight | 24KG | 24KG | 24KG |
Operating temperature | –25°C ... +60°C | –25°C...+60 °C | –25°C ... +60°C |
Continuous full output power | –25°C... +50 °C | –25°C...+50 °C | –25°C ... +50°C |
Noise emission (typical) | ≤ 25 dB(A) | ≤ 25 dB(A) | ≤ 25 dB(A) |
Altitude | Up to 2000m without power derating | ||
Consumption: operating |
|
|
|
Topology | transformerless | transformerless | transformerless |
Cooling concept | No fan | No fan | No fan |
Installation: Indoors / | yes /yes | yes /yes | yes /yes |
Features |
| ||
DCconnection:(MC3/MC4/H4) | opt/opt/yes | opt/opt/yes | opt/opt/yes |
AC connection: Terminals | yes | yes | yes |
LCD display | yes | yes | yes |
Interfaces: Bluetooth / | opt/yes/yes | opt/yes/yes | opt/yes/yes |
Warranty: 5 years / 10 years | yes /opt | yes /opt | yes /opt |
Certificates and approvals | VDE 0126-1-1,IEC 62109,RD 1663,G83 | ||
